    Manual Or Hydraulic 7.5kw Cold Formed Steel Machine 1ac.5mm Steel Thickness

    Manual / Hydraulic 7.5kw Cold Roll Forming Machine 1ac.5mm Steel Thickness


    Main specification

    NoSpecification of the material

    1


    Suitable MaterialGalvanized steel 195-235Mpa

    2


    Width of the raw materialBased on profile drawing
    3Thickness1.5mm

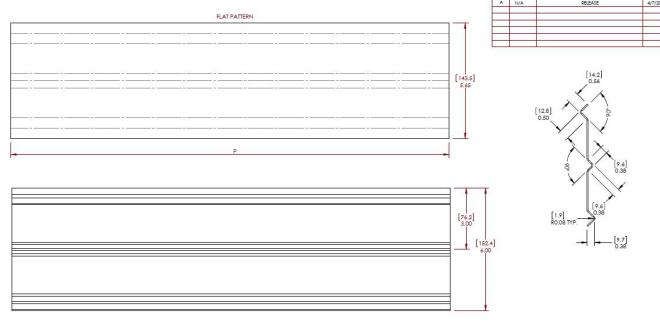

    Profile drawing:


    The Chart of Process Flow

    Manual Uncoiler—Roll Forming—Rectify—Cutting—Out table


    Machine Detailed Parameters:


    1Machine structureWire-electrode cutting structure,adjust size by manual hand wheel
    2Total power

    Motor power-7.5kw, servo motor

    Hydraulic power-5.5kw

    3Roller stationsAbout 11 stations + one station for rectify (according the final design)
    4Productivity0-15m/min
    5Drive systemBy gear box driving
    6Diameter of shaft¢76mm solid shaft

    7


    Voltage380V 50Hz 3phases (Customized)

    8


    Container need40GP container


    Warranty

    • Warranty: 1 year warranty from date of shipment
    • Guarantee:

    1: Guaranteed against malfunctions due to manufacturing defects for 1 year after date of shipment. Repairs will be made free of charge.

    2:Air ticket, transportation cost, hotel, meals and 80$ per day shall be for purchaser’s account if manufacturer’s engineer has to be send to purchaser’s factory to maintain the machine during the guarantee period.
