0.3-0.6mm Spanish Tile Roll Forming Machine 20 M / Min Chain Drive Roll Form Machine

1. Specification of the material

2. Machine Detailed Parameters

3. Profile drawing

4. The Chart of Process Flow

5. Specification of Components

(1) 5T Manual Un-coiler

• Width of feeding: 1250mm
• Capability: 5 Ton
• Inter diameter: 500-590mm
• Maximal out diameter: 1500mm
• Mode of expand &fight: inner expand &fight by manual
• Way of feeding: manual

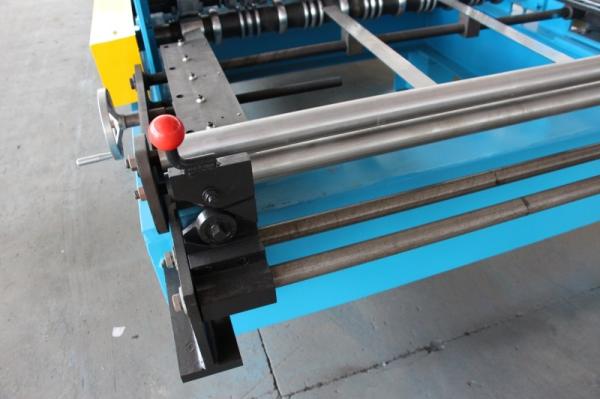

(2) Main Roll Forming Machine

• Roller material:ASTM1045 chrome plated surface with chrome
• Shaft diameter: ￠85mm material: SAE1045 with quenching and tempering

(3) Machine Structure

• Main frame by 350H beam welding
• Machine structure: guide pillar

(4)Pressing System:

• This machine use double pressing mould.
• Pressing after forming: Press the sheet after roll forming to required length
• Hydraulic drive uses the same hydraulic unit with cutting
• Material of mold:Cr12, 58-62 HRC hardness
• Pressing by hydraulic, 11KW
• Working pressure: 20Mpa adjustable
• Length measuring: Automatic encoder length measuring
• Tolerance of length: +/- 1.5mm for each piece end product.

(5) Hydraulic cutting system

• Cutting after forming: Cut the sheet after roll forming to required length
• Uses two hydraulic cylinders for operation.
• Material of blade:Cr12, 58-62 HRC hardness
• Cutting power by hydraulic,11KW
• Working pressure: 20Mpa adjustable
• Length measuring: Automatic encoder length measuring
• Tolerance of length: +/- 1.5mm for each piece end product

(6) Computer Control Cabinet

• Programmable setting of profile length and quantity
• Operating system language: English and Chinese
• Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved

• PLC: Panasonic or customerization

​6.Training and Installation
1 We offer installation service local in paid, reasonable charge.
2 QT test is welcome and professional.
3. manual and using guide is optional if no visiting and no installation.
Certification and after service
1. Match the technology standard, ISO producing certification
2. CE certification
3. 12 months warranty since the delivery
