Standing Seam Metal Roofing Profile Roll Forming Machine with 20GP Container

1. Specification of the material

2. Machine Detailed Parameters

3. Profile drawing

5. The Chart of Process Flow

Manual Decoiler—Roll Forming—Cutting—Out table

5. Machine reference pictures

6. Specification of Components

(1) Un-coiler

• Width of feeding: 760mm
• Capability: 3.0Ton
• Inter diameter: 500-590mm
• Maximal out diameter: 1200mm
• Mode of expand &fight: inner expand &fight by manual
• Way of feeding: manual

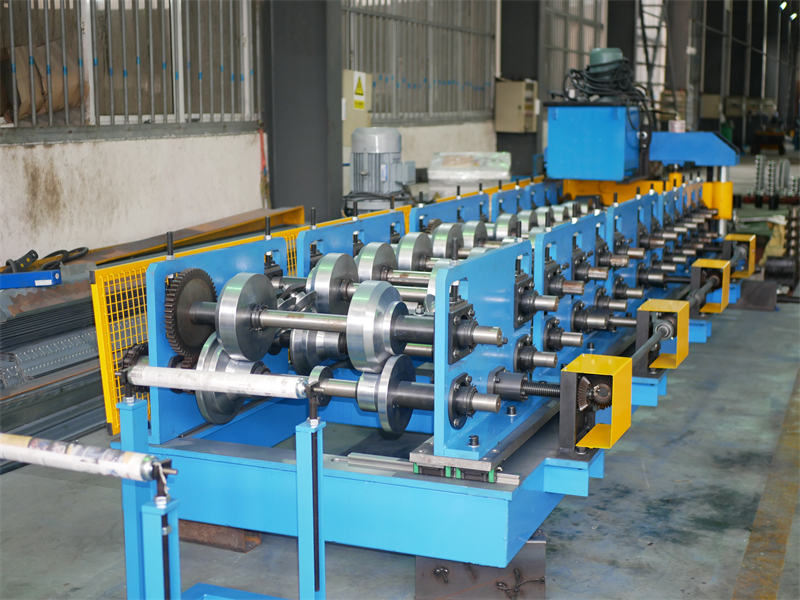

(2) Main Roll Forming Machine

• Roller material:45# steel, chrome plated surface with chrome
• Shaft diameter: ￠70mm material: SAE1045 with quenching and tempering
• main power: 7.5KW
• one side of the machine fix, another side of the machine can movable inside or out side.

• Cutting before forming: Cut the sheet before roll forming to required length
• Material of blade:Cr12, 58-62 HRC hardness
• Cutting power by hydraulic,5.5KW
• Working pressure: 12Mpa adjustable
• Length measuring: Automatic encoder length measuring
• Tolerance of length: +/- 1.5mm for each piece end product

(4) Hydraulic station

• Hydraulic power: 5.5kw
• Working pressure: 12Mpa adjustable
• Solenoid valve: 1 group
• Hydraulic oil: 46# hydraulic oil

(5) Computer Control Cabinet

• Programmable setting of profile length and quantity
• Operating system language: English and Chinese
• Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
• PLC: Panasonic or customerization

7. Installation and training:

a.If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.

b.Without visiting, we will send you user manual and video to teach you to install and operate.

C.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.

Zhangjiagang Saibo Science & Technology Co.,Ltd. is a professional manufacturer specializing in the developing and exporting of roll forming machine such as Metal roof &wall panels machines, C&Z-shaped pulins machines drywall Stud-track forming machines , Metal decks machines ,No- girder and Columnitation curves forming machines, Guard rails forming machines ,Downspout pipes forming machines and so on. Our company, which is located in zhangjiagang city ,.is close to Zhangjiagang Economy Development Area and Shanghai City with superior geographic position and convenient transportation.

Since 90s ,in the 20 centruies , the market for steel structure building industry boomed but with the development of steel structure industry ,the shorter period for construction and beautiful extermal appearance, as well reasonable price was occupied in the market of building industry.

Zhangjiagang Saibo Science & Technology Co., Ltd engaged in the steel structure industry in many years and devoted to developing some steel structure machines with a professional technology and reasonable price, we supply the best machines for our new and old costomers .In particular, we are a leading exporter in the field of steel structure construction, and can provide professional service, high quality ,through design, and installation. Our goal is" future by heartiness, faith leads to the world"

Warmly welcome to visit our factory and we are looking forward to cooperating with you for mutual benefits.
