Drip Trim Roll Froming Machine
For Keel roll forming machine, everyone has different special concerns about it, and what we do
is to maximize the product requirements of each customer, so the
quality of our Keel roll forming machine has been well received by many customers and enjoyed a good
reputation in many countries. Zhangjiagang City Saibo
Science&Technologu Co.,Ltd. Keel roll forming machine have characteristic design & practical performance & competitive
price, for more information on the Keel roll forming machine, please feel free to contact us.
Drip Trim Roll Forming Machine
1. Composition of machine
Roll forming main machine……………………………1 unit
Manual Un-coiler……………………………………… 1 unit
Control panel…………………………………………..1 unit
Hydraulic station…………………………………… …1 unit
Out table ………………………………… ……………2 unit
Spare tools……………………………………………...one box
2. Machine Detailed Parameters
| 1 | Roll Forming
| YX40-135/175 |
| 2 | Coil width
| 315/275mm |
| 3 | Rolling Speed
| 0-15m/min |
| 4 | Rolling Thickness
| 0.5mm aluminium alloy steel |
| 5 | Control System
| PLC |
| 6 | Un Coiler
| 3 ton manual un-coiler |
| 7 | Roller Stations
| 9 stations |
| 8 | Roller Material
| 45 forge steel, surface with chrome |
| 9 | Shaft Material and DIA
| ￠56mm, material is 40CR |
| 10 | Maim Motor Power
| 5.5KW |
| 11 | Hydraulic Station Power
| 4KW |
12
| Hydraulic Pressure | 12Mpa |
| 13 | Cutting type | Hydraulic cutting, 4kw
|
14
| Material Of Cutting | Cr12, quenching 58-62℃ |
15
| Tolerance | 3m+-1.5mm |
16
| Electric Source | 380V, 50HZ,3 phase According to customer’s require |
17
| Way Of Drive | By chain |
18
| Color Of The Machine | Yellow and blue |
3. Profile drawing
4. The Chart of Process Flow
5. Specification of Components
(1) 3T Manual Un-coiler
- Adopt automatic hydraulic system for expand
- Width of feeding: 500mm
- Capability: 3 Ton
- Bound of expand &fight: 380mm—520mm
- Mode of expand &fight: inner expand &fight by manual
- Way of feeding: manual
(2) Main Roll Forming Machine
Roll station: 9 stations
Material of roller: 45＃forge steel, coated with chrome
Material of main shaft:40CR diameter roller: Ф56mm
Main power: 5.5kw
Forming thickness: 0.5mm, aluminium alloy steel
Transmission: By chain, 1.0inch, single line

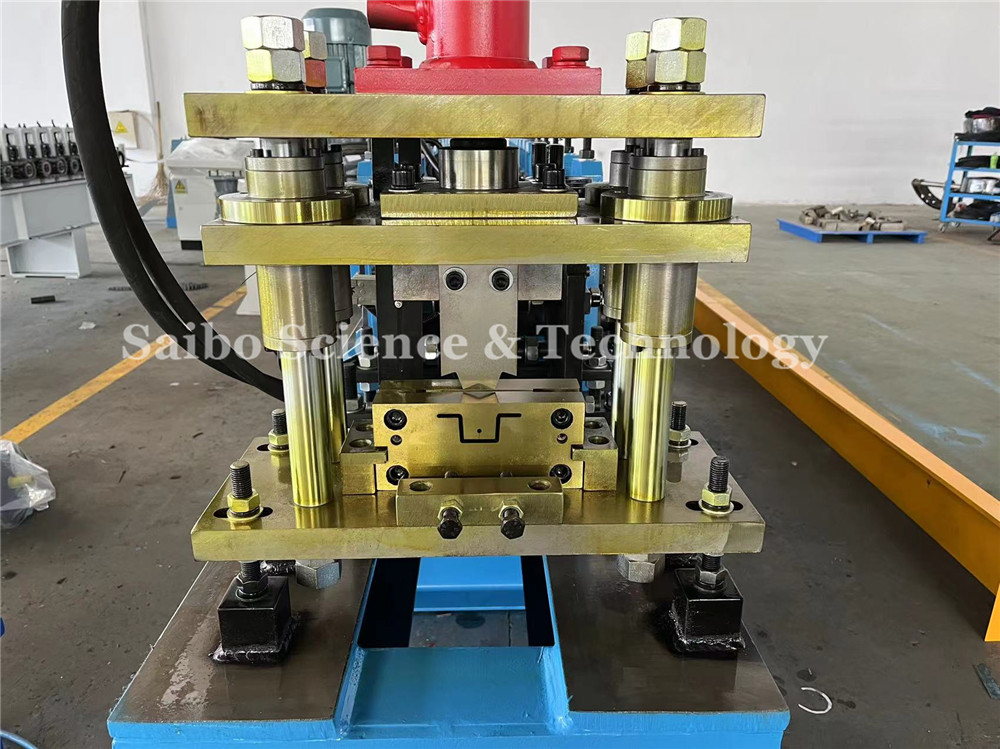

(3) Post cutting system
- Machine adopt hydraulic cutting
- Cutting after forming: Cut the sheet after roll forming to required
length
- Cutting motion: The main machine automatically stops and the
cutting will take place. After the cutting, the main machine will
automatically start.
- Material of blade:Cr12 with heat treatment 58-60°
- Length measuring: Automatic encoder length measuring
- Tolerance of length: +/- 1.0mm
(4) Computer Control Cabinet
- Programmable setting of profile length and quantity
- Operating system language: English and Chinese
- Computer used to control length & quantity. Machine will
automatically cut to length and stop when required quantity is
achieved
- PLC: Panasonic or customerization
6. Machine pictures
FAQ
1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .
2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are
optional.
3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas
services by skillful technicians.
4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control
complies with ISO9001. Every machine has to past testing running
before it's packed for shipment.
5) How can I trust you that machines pasted testing running before
shipping?
A: 1) We record the testing video for your reference. Or,
2) We welcome you visit us and test machine by yourself in our
factory.
6) Q: Do you have this roof panel roll forming machine in stock?
A: No, machine is made to order.
