Struct have many different sizes, as standard include:
21*21,21*41/41*41,41*62,41*82 and so on. Same machine can make
different size, can by full automatic adjustable design or cassette
design or adjust roller by spacer.
We give high speed on line punching also, can achieve by rolling
punching or high speed punching machine, and we adopt high speed
non-stop cutting, after cut can automatic
stacking&packing.Truly realized the full automation operation.
1. Main speficication:
1
| Suitable Material | GI, SS, HR, CR |
2
| Width of the raw material | 110-240MM |
| 3 | Thickness | 2.0-3.5mm |
2. The Chart of Process Flow
Feeding—Roll Forming—Rectify—Fly Saw Cutting—Auto stacker

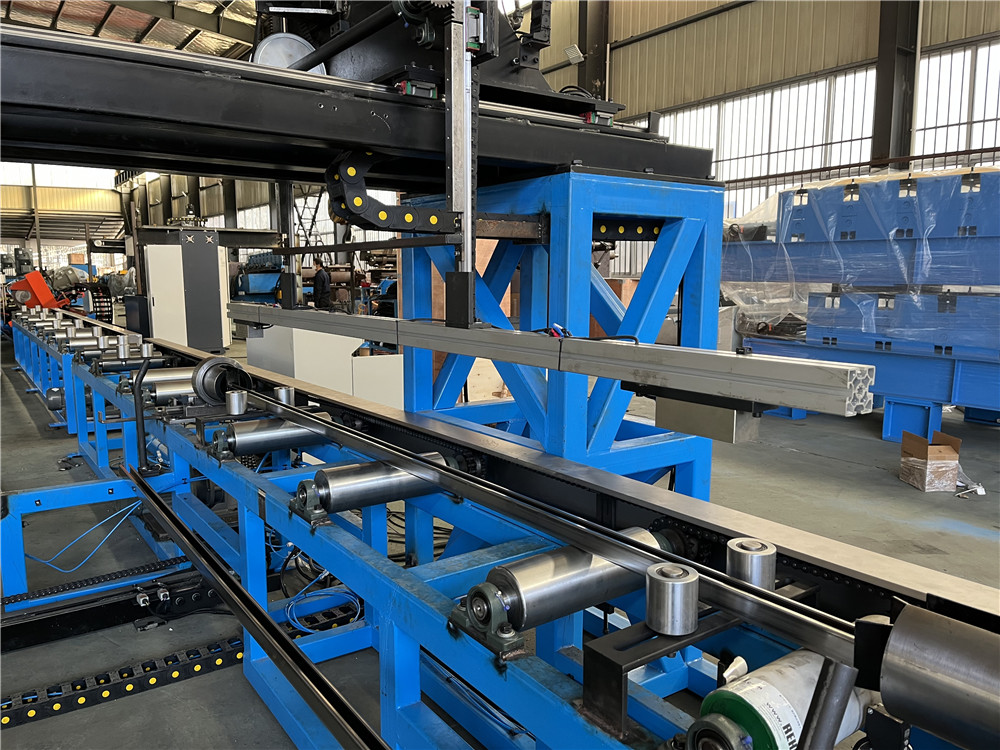

3, Machine pictures for reference
4. Specification of Components
| No | | Technical Specification & Remark |
| 1 | Roll forming
| - Roll station:27stations +1 station of torque head
- Roller material: Cr12mov with heat treatment, HRC 58-82, surface
with chrome
- Shaft diameter: ￠85mm material: 40CR,
- Main motor: 37KW
- Forming speed: 30-50m/min
- Machine drive part will be covered with protective cover
|
| 2 | Fly saw cuttings system
|
- Cutting after forming: Cut the sheet after roll forming to required
length
- Material of blade: Cr12MOV, 58-62 HRC hardness
- Cutting power by hydraulic,7.5KW
- Servo power: 3KW Yaskawa
- Working pressure:16Mpa
- Cutting and servo in the middle under cutting
- Length measuring: Automatic encoder length measuring
- Tolerance of length: +/- 1.0mm for each piece end product
|
| 3 | Computer Control Cabinet
|
- Programmable setting of profile length and quantity
- Operating system language: English and Chinese
- Voltage, Frequency, Phase: 380 V, 50 Hz, 3Phase
- Computer used to control length & quantity. Machine will
automatically cut to length and stop when required quantity is
achieved
- Length inaccuracy can be amended easily.
- Control panel: Button-type switch and touch screen
- Unit of length: millimeter
- PLC: Siemens
- HMI: MCGS
|
5. Packing & Delivery
- Deliver time: take goods after receive deposit 80 days
- Packing: suitable of ocean transportation
6. Warranty
- Warranty: 1 year warranty from date of shipment
- Guarantee:
1: Guaranteed against malfunctions due to manufacturing defects for
1 year after date of shipment. Repairs will be made free of charge.
2: Repairs will not be performed free of change even during the
guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after
installation
3:Air ticket, transportation cost, hotel, meals and 100$ per day
shall be for purchaser’s account if manufacturer’s engineer has to
be for installation new machine.
