Corrugated Roll Forming Machine

1. Specification of the material

2. Machine Detailed Parameters

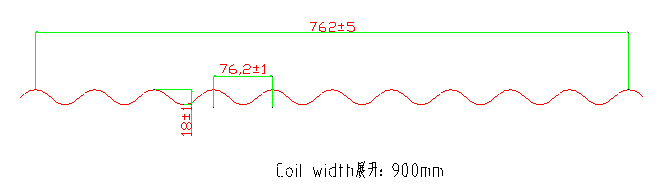

3. Profile drawing

4. The Chart of Process Flow

Manual Decoiler—Roll Forming—Cutting—Out table

5. Specification of Components

(1) 5T Manual Un-coiler

• Width of feeding: 1250mm
• Capability: 5 Ton
• Inter diameter: 500-590mm
• Maximal out diameter: 1500mm
• Mode of expand &fight: inner expand &fight by manual
• Way of feeding: manual

(2) Main Roll Forming Machine

• Roller material: 45# forge steel, chrome plated surface with chrome
• Shaft diameter: ￠80mm material: material is 45# forge steel

(3) Machine Structure

• Main frame by 350H beam welding
• Machine structure: wall board

(4) Hydraulic cutting system

• Cutting after forming: Cut the sheet after roll forming to required length
• Material of blade:Cr12, 58-62 HRC hardness
• Cutting power by hydraulic,5.5KW
• Working pressure: 16Mpa adjustable
• Length measuring: Automatic encoder length measuring
• Tolerance of length: +/- 1.5mm for each piece end product

(5) Hydraulic station

• Hydraulic station power: 5.5kw
• Hydraulic pressure: 16Mpa

(6) Computer Control Cabinet

• Programmable setting of profile length and quantity
• Operating system language: English and Chinese
• Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
• PLC: Panasonic or customerization

6. Our advantage

• Our advantage

1. Short delivery period.
2. Effective communication
3. Interface customized.

• Training and Installation

1. We offer installation service local in paid, reasonable charge.
2. QT test is welcome and professional.
3. manual and using guide is optional if no visiting and no installation.

• Certification and after service

1. Match the technology standard, ISO producing certification
2. CE certification
3. 12 months warranty since the delivery. Board.
