M Purlin Roll Forming Machine Gear Box Driving with Guide Pillar Structure

Ask Lasest Price
Brand Name :	Saibo
Model Number :	YX55-100
Certification :	CE/ISO
Price :	negotiation
Supply Ability :	300 sets per year
Delivery Time :	60 working days after received deposit

Add to Cart

Product Details
Company Profile

M Purlin Roll Forming Machine Gear Box Driving with Guide Pillar Structure

Main specification

No	Specification of the material
1	Suitable Material	Galvanized steel up to 235Mpa
2	Width of the raw material	Based on the purlin sizes.
3	Thickness	4.2±0.18mm

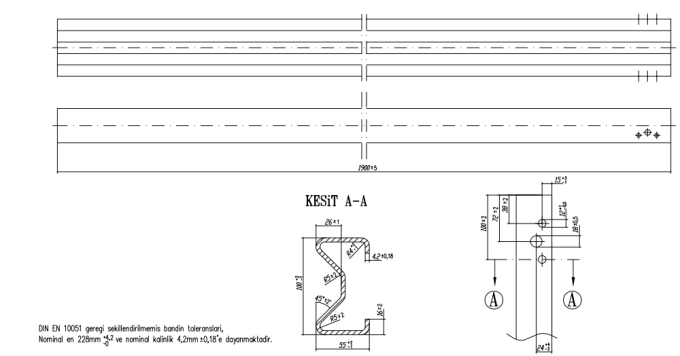

Profile drawing:

The Chart of Process Flow

Hydraulic decoiler+Coil car—Feeding&Leveling+Logo—Punching+Serial number —Feeding&Roll Forming—Cutting—Out table

Specification of Components

No		Technical Specification & Remark
1	Hydraulic Un-coiler	Steel coil width: 550 mm; Internal diameter of coil: variable, from 470 mm to 520 mm Maximum coil weight: 5000 Kg; Main motor power: 5.5KW Hydraulic power: 4kw
2	Leveling part	Leveling: to make the sheet in flat then go to the punching. three rollers over four Material of roller:: Gcr15, 58-62 HRC hardness Logo by roller, logo information and size will be provide by customer
3	Punching+Serial number	One punching stations for make the holes as drawing showed. Each coil will have an unique number. The traceability numbers consist of 6 digits replaceable numbers and alphabets. Alphabets will start from ‘A’ to ‘Z’ and the numbers will start from ‘0’ to ‘9’. 6 set of marking is required
4	Main Roll Forming Machine	Roller material: GCR15 quenched 58°-62 and hard chrome Shaft diameter: ￠100mm material: SAE1045 with tempering Drive by gear box for each stations Main power in 45KW
5	Machine structure:	Main frame: complete welding beam system Machine structure: Guide pillar Transmission: by gearbox
6	Hydraulic cutting system	Cutting after forming: Cut the sheet after roll forming to required length Material of blade:Cr12, 58-62 HRC hardness Cutting power by hydraulic,7.5KW Working pressure: 16-20Mpa adjustable Length measuring: Automatic encoder length measuring Tolerance of length: +/- 1.5mm for each piece end product
7	Hydraulic System	Hydraulic power: 7.5kw Working pressure:12-16Mpa adjustable Solenoid valve:2 groups Hydraulic oil: 46# hydraulic oil Cooling fan is include Quantity :1
8	Computer Control Cabinet	Programmable setting of profile length and quantity Operating system language: English and Chinese Voltage, Frequency, Phase: 380 V, 50 Hz, 3Phase Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved Length inaccuracy can be amended easily. Control panel: Button-type switch and touch screen Unit of length: millimeter PLC brand: Siemens
9	Out table	Jointed by steel tube Size: about 2.0m long0.8mwide0.6-1mhigh One out table with three support roller Quantity: 2 units

Installation and training

a. If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.

b. Without visiting, we will send you user manual and video to teach you to install and operate.

c. If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.

After Service

a. One year guarantee for whole machine.

b. 24 hours technical support by email or calling.

c. If there is any problem found of the machine, we will repair it for free in one year.
