sheet metal forming machines

1. Specification of the material

2. Machine Detailed Parameters

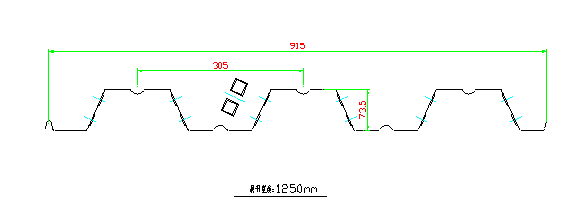

3. Profile drawing

4. The Chart of Process Flow

5. Specification of Components

(1) 5T Hydraulic Un-coiler

• Width of feeding: 1250mm
• Capability: 5 Ton
• Inter diameter: 470-520mm
• Maximal out diameter: 1500mm
• Coil placement in the coil holder: hydraulic hoist
• Working speed: 0--20m/min adjustable
• Main motor power: 5.5KW AC motor
• Hydraulic power: 4kw

(2) Main Roll Forming Machine

• Roller material: ASTM1045 chrome plated surface with hardness, CNC
• Shaft diameter: ￠85mm material: SAE1045 with quenching and tempering
• Main frame by 350H beam welding
• Machine structure: wall board

(3) Hydraulic cutting system

• Cutting after forming: Cut the sheet after roll forming to required length
• Uses two hydraulic cylinders for operation.
• Material of blade:Cr12, 58-62 HRC hardness
• Cutting power by hydraulic,5.5KW
• Working pressure: 12Mpa adjustable
• Length measuring: Automatic encoder length measuring
• Tolerance of length: +/- 1.5mm for each piece end product

(4) Computer Control Cabinet

• Programmable setting of profile length and quantity
• Operating system language: English and Chinese
• Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved

• PLC: Panasonic or customerization
