Metal deck roll forming machine

The normal machinable thickness range of our steel deck roll forming machine is 0.8-1.2mm, the standard or more used in international market is Gauge 22, 20, 18, 16 (0.75-1.5mm), working raw material is PPGI, Galvanized steel etc. We confirm machine’s configuration according to your drawing, specially the pitch and height of each wave, Dingbo Technology is always your best choice of metal deck roll forming machine.

Saibo make different profiles according to customers’ drawing, tolerance and budget, offering professional one-to-one service, adaptable for your every need.

1. Specification of the material

2. Machine Detailed Parameters

3. Profile drawing

4. The Chart of Process Flow

5. Specification of Components

(1) 5T Manual Un-coiler

• Width of feeding: 1250mm
• Capability: 5 Ton
• Inter diameter: 500-590mm
• Maximal out diameter: 1500mm
• Mode of expand &fight: inner expand &fight by manual
• Way of feeding: manual

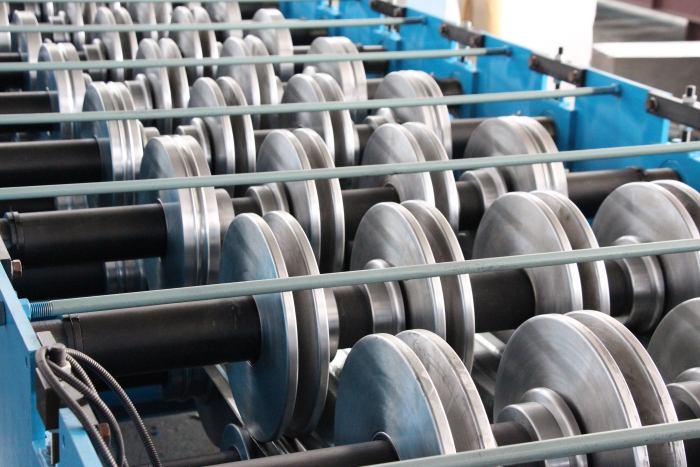

(2) Main Roll Forming Machine

• Roller material: ASTM1045 chrome plated surface with hardness, CNC
• Shaft diameter: ￠85mm material: SAE1045 with quenching and tempering
• Main frame by 350H beam welding
• Machine structure: wall board

(3) Hydraulic cutting system

• Cutting after forming: Cut the sheet after roll forming to required length
• Uses two hydraulic cylinders for operation.
• Material of blade:Cr12, 58-62 HRC hardness
• Cutting power by hydraulic,7.5KW
• Working pressure: 12Mpa adjustable
• Length measuring: Automatic encoder length measuring
• Tolerance of length: +/- 1.5mm for each piece end product

(4) Computer Control Cabinet

• Programmable setting of profile length and quantity
• Operating system language: English and Chinese
• Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved

• PLC: Panasonic or customerization
