    2.0-5.0mm Thickness Galvanized Gutter Roll Forming Machine Gear Box 22KW

    Ask Lasest Price
    Brand Name : Saibo
    Model Number : YX100-400
    Certification : CE/IS09001/SGS
    Price : negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 200 sets per year
    Delivery Time : 65 working days after received deposit
    • Product Details
    • Company Profile

    2.0-5.0mm Thickness Galvanized Gutter Roll Forming Machine Gear Box 22KW

    YX100-400 Gutter Roll Forming Machine

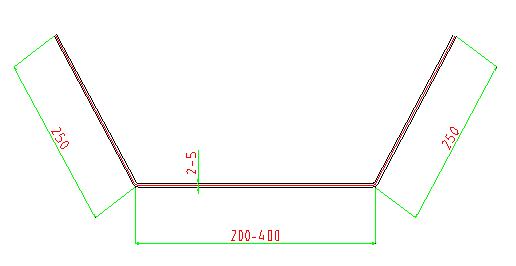

    Profile:

    All of our machine profile is customized, above profile is only for your reference.

    Coil width: adjustable

    Effective width: according the profile

    Thickness: 2.0-5.0mm

    Layout:

    5T Hydraulic de-coiler—Feeding—Roll Forming—Cutting—Out table


    Specifications:

    Item NO

    Description


    Offered specification

    1Roll Forming Machine

    Gutter


    2Coil widthAdjustable
    3Rolling Speed12-15m/min(not include cutting time)
    4Rolling Thickness2.0-5.0mm GI
    5Control SystemPLC (Panasonic) as list in the note
    6Un Coiler5T hydraulic decoiler
    7LevelingThree rollers over four
    8Roller StationsAbout 9 stations (according the final design)
    9Roller MaterialGcr15, coated with chrome
    10Shaft Material and DIA¢100mm, material is 45# forge steel
    11Post cuttingHydraulic cutting after forming
    13Maim Motor Power22kw
    14Hydraulic Station Power7.5kw with fen cooling
    15Hydraulic Pressure16-20Mpa adjustable
    16Material Of CuttingCr12Mov quenching 58-62℃
    17Structure Of The StationsCast iron
    18Tolerance3m+-1.5mm
    19Electric Source

    380V, 50HZ,3 phase

    According to customer’s require


    20Way Of DriveBy gearbox
    21Color Of The MachineYellow and blue
    22Size of the machineL*W*H about 10m*1m*1.2m
    23Container Need1x40 feet + 1x20 feet


    Main Features

    1. Simple structure in linear type ,easy in installation and maintenance.

    2. Adopting advanced world famous brand components in pneumatic parts, electric parts and operation parts.

    3. Running in a high automatization and intellectualization, no pollution

    4. No need foundation, easy operation
