M192 Two Waves Guard Rail Roll Forming Machine

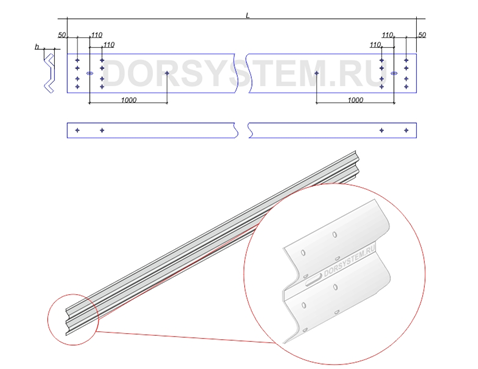

Profile:
All of our machine profile is customized, above profile is only for
your reference.
1. Coil width: according the profile
2. Effective width: according the profile
3. Thickness: 3.0-4.0mm

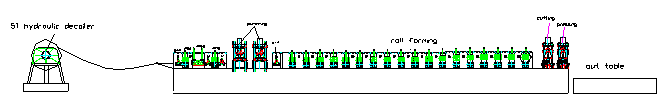

Layout:
Hydraulic decoiler—Leveling—Punching—Roll
Forming—Rectify—Cutting—Out table
Specifications:
| Item NO |
Description |
Offered specification |
| 1 | Roll Forming Machine | Guardrail
|
| 2 | Material Width | According the profile |
| 3 | Rolling Speed | 12-15m/min(not include cutting & punching time) |
| 4 | Rolling Thickness | 3.0-4.0 mm |
| 5 | Control System | PLC (Panasonic) as list in the note |
| 6 | Un Coiler | 5 ton hydraulic de-coiler |
| 7 | Roller Stations | 13 stations (including two feeding station) |
| 8 | Leveling Station | 1 station (three rollers over four) |
| 9 | Punching | Two sets punching |
| 10 | Roller Material | GCR15, HRC58-62℃ coated with chrome |
| 11 | Shaft Material and DIA | ￠110mm, material is 45# forge steel |
| 12 | Maim Motor Power | 45kw |
| 13 | Hydraulic Station Power | 11kw |
| 14 | Hydraulic Pressure | 20Mpa |
| 15 | Cutting & pressing | By hydraulic |
| 16 | Material Of Cutting/pressing | Cr12Mov quenching 58-62℃ |
| 17 | Structure Of The Stations | Guide pillar |
| 18 | Tolerance | 3m+-1.5mm |
| 19 | Electric Source | 380V, 50HZ,3 phase According to customer’s require
|
| 20 | Way Of Drive | By gearbox |
| 21 | Color Of The Machine | Yellow and blue |
| 22 | Container Need | 1 x40 feet & 1 x20 feet |
Main Features
1. The structure is simple and the appearance of the machine is
beautiful because we adopt the shape-steel structure and process as
a whole after welding. It has the ability of strong loading and
stable operation when running the machine.
2. All the components of machine are from brand-famous enterprise
so that they ensure the machine normal function very effectively.
3. We adopt the automatic length-fixed forming and cutting to
guarantee the length to be precise and the finished product clear
without deforming.
4. It is very easy to install the equipment and suitable for
producing in the factory.
5. The machine has features of low noise and high efficiency.
FAQ
1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .
2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are
optional.
3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas
services by skillful technicians.
4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control
complies with ISO9001. Every machine has to past testing running
before it's packed for shipment.
5) How can I trust you that machines pasted testing running before
shipping?
A: 1) We record the testing video for your reference. Or,
2) We welcome you visit us and test machine by yourself in our
factory.
6) Q: Do you have this roof panel roll forming machine in stock?
A: No, machine is made to order.
Machine picture for reference
