YX30-200-1000 Roofing Panel Roll Forming Machine

1. Specification of the material

Suitable Material: Colored Steel plate, Galvanized steel

Width of the raw material :1250mm

Thickness :0.3-0.8mm

2. Machine Detailed Parameters

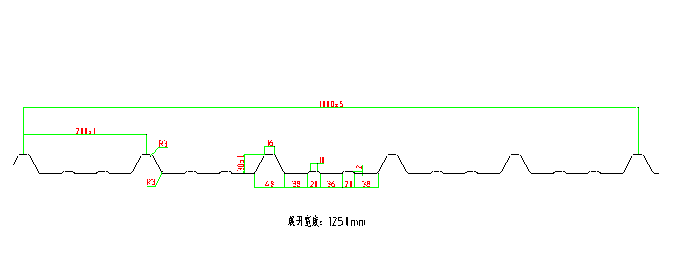

3. Profile drawing

4. The Chart of Process Flow

Manual Uncoiler—Pre-cutting—Roll Forming—Cutting—out table

5. Specification of Components

(1) 5T Manual Un-coiler

• Width of feeding: 1250mm
• Capability: 5 Ton
• Inter diameter: 500-590mm
• Maximal out diameter: 1500mm
• Mode of expand &fight: inner expand &fight by manual
• Way of feeding: manual

(2)Pre-cutting

• Pre-cutting install after feeding for customer change coil only
• Cutting type: manual
• Function:for coil replacement
• Quantity: 1

(3) Main Roll Forming Machine

• Roller material:ASTM1045 chrome plated surface with chrome
• Shaft diameter: ￠70mm material: SAE1045 with quenching and tempering
• Main frame by 350H beam welding
• Machine structure: guide pillar

(4) Mobile Protective mesh

• ​To avoid accidents, the machine will be covered with the mobile protective mesh

(5) Hydraulic cutting system

• Cutting after forming: Cut the sheet after roll forming to required length
• Uses two hydraulic cylinders for operation.
• Material of blade:Cr12, 58-62 HRC hardness
• Cutting power by hydraulic,4KW
• Working pressure: 12Mpa adjustable
• Length measuring: Automatic encoder length measuring
• Tolerance of length: +/- 1.5mm for each piece end product

(6) Computer Control Cabinet

• Programmable setting of profile length and quantity
• Operating system language: English and Chinese
• Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved

• PLC: Panasonic or customerization
