Manual Decoiler Stud Roll Forming Machine 5.5kw with Film System

1. Specification of the material

2. Machine Detailed Parameters

3. Profile drawing

4. The Chart of Process Flow

5. Specification of Components

(1) 3T Manual Un-coiler

• Adopt automatic hydraulic system for expand
• Width of feeding: 350mm
• Capability: 3 Ton
• Bound of expand &fight: 380mm—520mm
• Mode of expand &fight: inner expand &fight by manual
• Way of feeding: manual

(2) Film System

• Machine adopt film system in order to protect the coil

(3) Main Roll Forming Machine

• Roller material:ASTM1045 chrome plated surface with chrome
• Shaft diameter: ￠56mm material: SAE1045 with quenching and tempering
• Main frame by 350H beam welding
• Machine structure: Wall panel

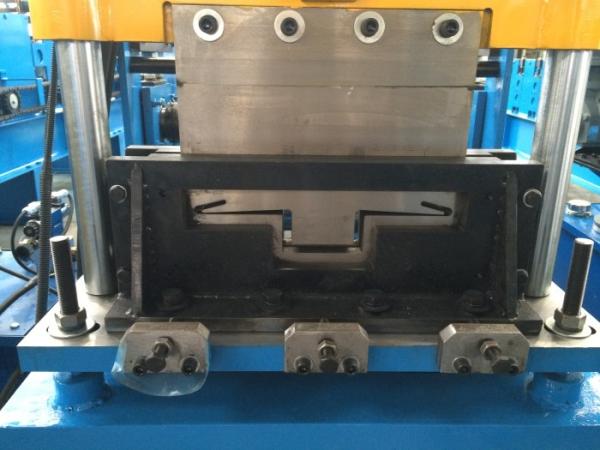

(4) Hydraulic cutting system

• Cutting after forming: Cut the sheet after roll forming to required length
• Uses two hydraulic cylinders for operation.
• Material of blade:Cr12, 58-62 HRC hardness
• Cutting power by hydraulic,3KW
• Working pressure: 12Mpa adjustable
• Length measuring: Automatic encoder length measuring
• Tolerance of length: +/- 1.5mm for each piece end product

(5) Computer Control Cabinet

• Programmable setting of profile length and quantity
• Operating system language: English and Chinese
• Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved

• PLC: Panasonic or customerization
