High Speed Steel Stud Roll Forming Machine with Manual Decoiler
0.4-0.8mm
1. Specification of the material
| 1 | Suitable Material | Colored Steel plate, Galvanized steel |
| 2 | Width of the raw material | According to the final profile |
| 3 | Thickness | 0.4mm-0.8mm |
2. Machine Detailed Parameters
| 1 | Roll Forming
| Angle roll forming machine
|
| 2 | Machine structure
| Wire-electrode cutting structure |
| 3 | Total power | Motor power-11kw Hydraulic power-7.5kw with fan system |
| 4 | Roller stations |
About 7 stations + one station for rectify
|
| 5 | Productivity
| 0-40m/min |
| 6 | Drive system
| By chain |
| 7 | Diameter of shaft
| ￠56mm solid shaft |
| 8 | Servo motor
| 3kw |
| 9 | Voltage
| 380V 50Hz 3phases (Customized) |
| 10 | Color Of The Machine
| Yellow and blue |
| 11 | Deliver Time
| 70 days |
| 12 | Terms Of Payment
| 30%T/T 70% pay before shipment |

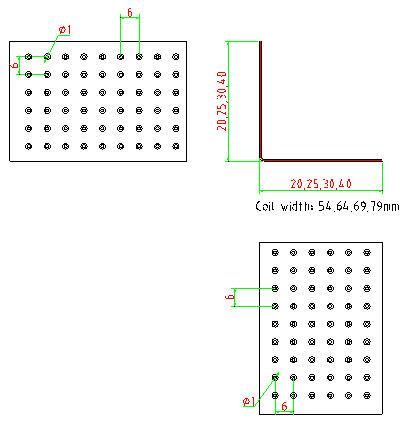

3. Profile drawing
4. The Chart of Process Flow
5. Specification of Components
(1) 3T Manual Un-coiler
- Adopt automatic hydraulic system for expand
- Width of feeding: 350mm
- Capability: 3 Ton
- Bound of expand &fight: 380mm—520mm
- Mode of expand &fight: inner expand &fight by manual
- Way of feeding: manual
(2) Main Roll Forming Machine
- Roller material:ASTM1045 chrome plated surface with chrome
- Shaft diameter: ￠56mm material: SAE1045 with quenching and
tempering
(3) Machine Structure
- Main frame by 350H beam welding
- Machine structure: Wire-electrode cutting
(4) Track cutting system
- Machine adopt track cutting system, Non-stop
- Cutting power by hydraulic, 7.5KW
- Track cutting by servo motor, power in 3.0KW
- Cutting after forming: Cut the sheet after roll forming to required
length
- Cutting motion: The main machine is NON-stop when cutting
- Material of blade:Cr12 with heat treatment 58-60°
(5) Computer Control Cabinet
- Programmable setting of profile length and quantity
- Operating system language: English and Chinese
- Computer used to control length & quantity. Machine will
automatically cut to length and stop when required quantity is
achieved
- PLC: Panasonic or customerization
FAQ
1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .
2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are
optional.
3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas
services by skillful technicians.
4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control
complies with ISO9001. Every machine has to past testing running
before it's packed for shipment.
5) How can I trust you that machines pasted testing running before
shipping?
A: 1) We record the testing video for your reference. Or,
2) We welcome you visit us and test machine by yourself in our
factory.
6) Q: Do you have this roof panel roll forming machine in stock?
A: No, machine is made to order.
