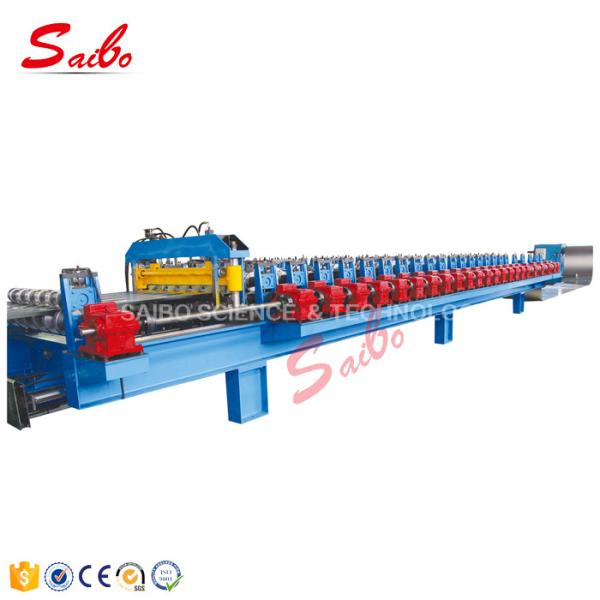

YX29-200-1000 Roofing Panel Roll Forming Machine
1. Specification of the material
| 1 | Suitable Material | Colored Steel plate, Galvanized steel |
| 2 | Width of the raw material | 1219mm/1250mm |
| 3 | Thickness | 0.3-0.8mm |
2. Machine Detailed Parameters
| 1 | Roll Forming Machine
| YX29-200-1000 |
| 2 | Machine structure
| Cast iron structure |
| 3 | Total power | Motor power-15kw Hydraulic power-5kw |
| 4 | Roller stations
| About 20 stations |
| 5 | Productivity
| 0-35m/min |
| 6 | Drive system
| By gear box |
| 7 | Diameter of shaft
| ￠76mm solid shaft |
| 8 | Voltage
| 380V 50Hz 3phases (Customized) |
| 9 | Color Of The Machine
| Bule and yellow |
| 10 | Deliver time
| 70 days |
| 11 | Terms Of Payment
| 30%T/T 70% pay before shipment |
3. Profile drawing
4. The Chart of Process Flow
Hydraulic Uncoiler—Roll Forming—Track cutting—Auto stacker
5. Specification of Components
(1) 5T Hydraulic Un-coiler
- Width of feeding: 1250mm
- Capability: 5 Ton
- Inter diameter: 470-520mm
- Maximal out diameter: 1500mm
- Coil placement in the coil holder: hydraulic hoist
- Working speed: 0--20m/min adjustable
- Main motor power: 5.5KW AC motor
- Hydraulic power: 4kw
- Quantity: 1
(2) Main Roll Forming Machine
- Roller material:ASTM1045 chrome plated surface with chrome
- Shaft diameter: ￠76mm material: SAE1045 with quenching and
tempering
(3) Machine structure
- Main frame by 350H beam welding
- Machine structure: cast iron
(4) Track cutting system
- Cutting after forming: Cut the sheet after roll forming to required
length
- Cutting motion: The main machine won’t stop when cutting,
continuous tracking cutting
- Adopt servo motor and ball screw to make the speed and size more
stable
- Servo power: 2.9kw
- Material of blade: CR12with heat treatment
- Length measuring: Automatic encoder length measuring
- Tolerance of length: 3m+/- 1.5mm
- Quantity: 1
(5) Computer Control Cabinet
- Hydraulic power: 5.5kw with storage tank and air cooling system
- Working pressure: 12Mpa adjustable
- Solenoid valve: 1 group
- Hydraulic oil: 46# hydraulic oil
- PLC: Panasonic or customerization
FAQ
1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .
2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are
optional.
3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas
services by skillful technicians.
4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control
complies with ISO9001. Every machine has to past testing running
before it's packed for shipment.
5) How can I trust you that machines pasted testing running before
shipping?
A: 1) We record the testing video for your reference. Or,
2) We welcome you visit us and test machine by yourself in our
factory.
6) Q: Do you have this roof panel roll forming machine in stock?
A: No, machine is made to order.
