Fast Speed Top Hat Roll Forming Machine Drive by gear box with Auto Stacker

Technical data of Top Hat roll forming machine

1. This machine is PLC controlled automatic roll forming machine line.

2. Machine including: double head un-coiler, main body with track cutting part, hydraulic station, control desk, auto stacker.

3. Machine can do Hat and C profile at the same time, when produce the hat profile need to chang some rollers

Spectification

Maintenance and safety

1. There should be an earth wire independently connected to the ground.

2. Keep cleans all the electric components. Clean them once a month.

3. Do not open the door of the electric box except for cleaning and adjustment.

4. While doing the monthly cleaning, check the insulation and connecting conditions of each electric component. Make sure there is no heat generation or oxidization.

5. The machine: 415V/50HZ, operating parts: AC24V, Please refer to electric principle drawing and table for maintenance.

6. Do not modify system parameter unless the operator is specialized in controlling system

.

7. Once the system does not work properly, please send for specialized technicians or electricians for maintenance.

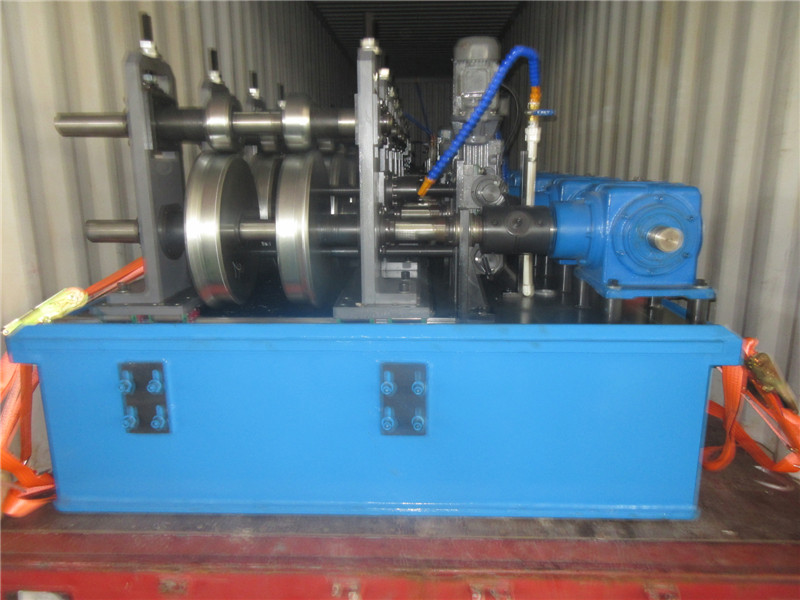

Machine picture for your reference:

Zhangjiagang Saibo Science & Technology Co.,Ltd. is a professional manufacturer specializing in the developing and exporting of roll forming machine such as Metal roof &wall panels machines, C&Z-shaped pulins machines drywall Stud-track forming machines , Metal decks machines ,No- girder and Columnitation curves forming machines, Guard rails forming machines ,Downspout pipes forming machines and so on. Our company, which is located in zhangjiagang city ,.is close to Zhangjiagang Economy Development Area and Shanghai City with superior geographic position and convenient transportation.

Since 90s ,in the 20 centruies , the market for steel structure building industry boomed but with the development of steel structure industry ,the shorter period for construction and beautiful extermal appearance, as well reasonable price was occupied in the market of building industry.

Zhangjiagang Saibo Science & Technology Co., Ltd engaged in the steel structure industry in many years and devoted to developing some steel structure machines with a professional technology and reasonable price, we supply the best machines for our new and old costomers .In particular, we are a leading exporter in the field of steel structure construction, and can provide professional service, high quality ,through design, and installation. Our goal is" future by heartiness, faith leads to the world"

Warmly welcome to visit our factory and we are looking forward to cooperating with you for mutual benefits.
