110KW 3 - 6mm thickness Silo Roll Forming Machinery Transmission Table

Ask Lasest Price
Brand Name :	Saibo
Model Number :	YX40-160-1120
Certification :	CE/ISO
Price :	negotiation
Payment Terms :	L/C, T/T
Supply Ability :	300 sets per year
Delivery Time :	90 days

Add to Cart

Product Details
Company Profile

110KW 3 - 6mm thickness Silo Roll Forming Machinery Transmission Table

3 - 6mm thickness Silo Roll Forming Machine with hydraulic Decoiler

Main speficication:

No	Specification of the material
1	Suitable Material	Galvanized steel
2	Width of the raw material	Based on the purlin sizes.
3	Thickness	3.0-6.0mm

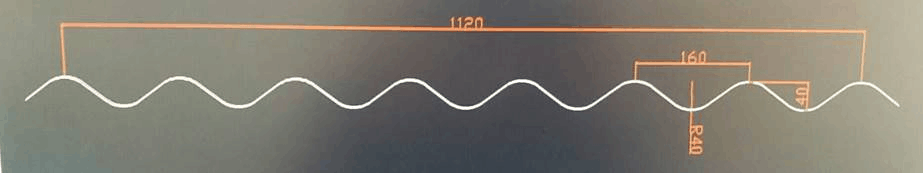

Profile:

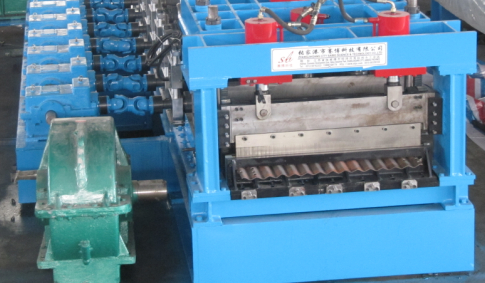

Main photo for reference

The Chart of Process Flow

De-coiler →Hydraulic press and leveling device→ Feeding→roll forming→track punching and stop cutting→transportation table→curving→end product

Specification of components

No		Technical Specification & Remark
1	10T Hydraulic de-coiler	Width of feeding: 1250mm Capability: 10 Ton Inter diameter: 470-520mm Maximal out diameter: 1500mm Working speed: 0-15m/min adjustable Main motor power: 7.5KW AC motor Hydraulic power: 5.5kw Speed controlled by frequency converter Color: blue Quantity: 1
2	Hydraulic press and leveling device	Hydraulic shovel head, hydraulic power shovel-head etc feeding steel plates. 4KW motor drives the uncoiling rollers to uncoiling the coils. Hydraulic control the press device and shovel table lift up and down and extend and shrink. It is include leveling device. Structure: It is welding by steel plates and profiled bar
3	Roll forming	Thickness range:3.0-6.0mm Main motor power:110kw Roll station:20stations Roller material:Gcr15 bearing material chrome plated surface with hardness 58-62 degree Shaft diameter: ￠160mm material: SAE1045 with quenching and tempering Transmission: by gear box Machine base frame adopt H beam welding steel Machine adopts wire-electrode cutting structure To avoid accidents, all of drive part adopt protect cover Color : Blue and yellow (or base on customer request) Quantity: 1
4	Track Punching system	Base on customer provide punching drawing, this machine need adopt 2 units hydraulic punching system Servo motor: 4.4KW Hydraulic power: 30kw Working pressure:25Mpa adjustable The punches and dollies will be CR-12, hardness HRC 58-62. When punch the sheet, the roll forming part will stop. The punching system will punch the sheet and go forward itself to punch all the holes on the sheet. After punch all the holes, the sheet will go forward to cut.
5	Hydraulic cutting	Cutting mode: Cut the sheet after roll forming to required length with stop Uses two hydraulic cylinders for operation shall include a flow regulator to achieve a uniform lowering knife. Cutting power by hydraulic: 30KW, share the same one to punching Working pressure: 25Mpa adjustable(according the final design) Material of blade:Cr12 with heat treatment 58-60° Length measuring: Automatic encoder length measuring
6	Transmission table	Connect from cutting to curving machine Transmission power:2.5kw AC motor Table size: length in 5m Drive of transmission by 1.0inch single line chain Transmission roller: ASTM1045 with chrome Color: blue or base on customer request Quantity: 1
7	Curving machine	Structure; adopt wall panel design, base frame adopt complete welding design to make sure the machine in strong Main motor power: 15kw, AC motor Roll station: 3 rollers for bending, 2 rollers for feeding Roller material: ASTM52100, chrome plated surface with chrome, CNC, HRC58-62 degree. Diameter of shaft: 120mm Driven by gear Minimum radius to work: 24 "(600 mm) Color: yellow and blue
8	Hydraulic station	Hydraulic power: 30kw Working pressure: 25-30Mpa adjustable Solenoid valve: 3 groups (1 for cutting and 2 for punching) Hydraulic oil: 46# hydraulic oil Color； Blue (or base on customer request) Quantity :1
9	Control panel system	Programmable setting of profile length and quantity Operating system language: English and Chinese Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved Length inaccuracy can be amended easily.

Warranty

Warranty: 1 year warranty from date of shipment
Guarantee:

1: Guaranteed against malfunctions due to manufacturing defects for 1 year after date of shipment. Repairs will be made free of charge.

2: Repairs will not be performed free of change even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

3:Air ticket, transportation cost, hotel, meals and 100$ per day shall be for purchaser’s account if manufacturer’s engineer has to be send to purchaser’s factory to maintain the machine during the guarantee period.
