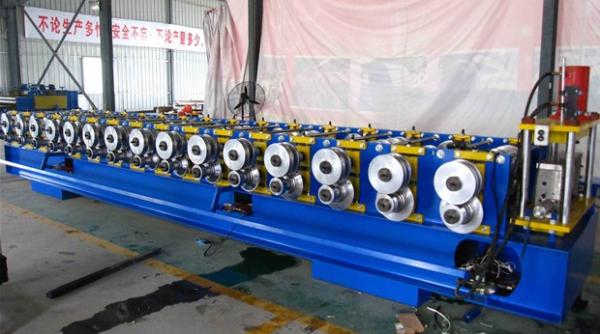

    Straight & Tapered Standing Seam Roof Roll Forming Machine 7.5KW

    RE65-600 Straight & Tapered Standing Seam Roof Roll Forming Machine with seaming machine


    1. Equipment List

    ItemQTY
    Rollformer (Straight forming &Tapered forming)1Set
    Hydraulic System1Set
    Hydraulic Cutoff Device1Set
    PLC Control System1Set
    5T Manual Uncoiler1Set
    Supporting Rack3pcs
    Gantry Lifting Frame1Set
    Automatic seamer1 set
    Manual seamer2pcs
    20’GP container1 set

    2. Technical Parameters

    Main Parameters
    Motor7.5KWThickness

    0.5-0.8mm Prepainted Sheet

    0.7-1.2 Aluminium Sheet

    TransmissionRoller ChainsRaw materialPrepainted/Aluminium Sheet
    Stations14 Forming StationsCoil WidthMax.680mm
    Dimension5.7m×1.3m×1.0m(L×W×H)Coverage Width300/400/500/600mm
    Weight7.5TForming Speed0-15m/min
    Shaft Diameter75mmMin. Coil Width680mm
    Hydraulic Motor1.5KWMin. Coverage Width300mm
    Shear Blade MaterialCr12Max. Coil Width680mm
    Roller Material45# steel with harden treatment with hard chrome filmMax. Coverage Width600mm
    Electrical Control SystemPLC Frequency ControlCut To LengthEncoder 10m±3mm
    Voltage380V, 50HZ, 3PH

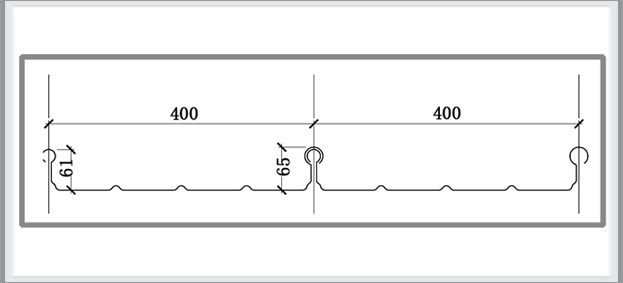

    3. Profile drawing




    Joint



    Layout drawing:
