YX51-485 Standing Seam Roof Panel Roll Forming Machine with rib and seaming machine

Corrugated Roll Forming Machine

1. Specification of the material

2. Machine Detailed Parameters

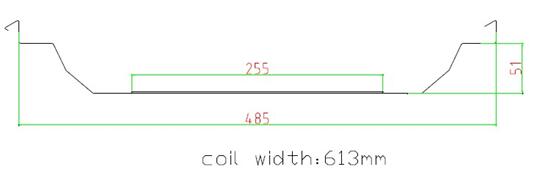

3. Profile drawing

4. The Chart of Process Flow

Manual Decoiler—Roll Forming—Cutting—Out table

5. Specification of Components

(1) Un-coiler

• Width of feeding: 1000mm
• Capability: 3.5Ton
• Inter diameter: 500-590mm
• Maximal out diameter: 1500mm
• Mode of expand &fight: inner expand &fight by manual
• Way of feeding: manual

(2) Main Roll Forming Machine

• Roller material:ASTM1045 chrome plated surface with chrome
• Shaft diameter: ￠65mm material: SAE1045 with quenching and tempering
• main power: 5.5KW

• Cutting before forming: Cut the sheet before roll forming to required length
• Material of blade:Cr12, 58-62 HRC hardness
• Cutting power by hydraulic,4KW
• Working pressure: 12Mpa adjustable
• Length measuring: Automatic encoder length measuring
• Tolerance of length: +/- 1.5mm for each piece end product

(4) Hydraulic station

• Hydraulic power: 4kw
• Working pressure: 12Mpa adjustable
• Solenoid valve: 1 group
• Hydraulic oil: 46# hydraulic oil

(5) Computer Control Cabinet

• Programmable setting of profile length and quantity
• Operating system language: English and Chinese
• Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
• PLC: Panasonic or customerization

6. Installation and training:

a.If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.

b.Without visiting, we will send you user manual and video to teach you to install and operate.

C.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
