YX17-76.3-1068.2 High Speed Corrugated Roll Forming Machine fly cutting no stop

YX17-76.3-1068.2 Corrugated Roll Forming Machine

1. Specification of the material

2. Machine Detailed Parameters

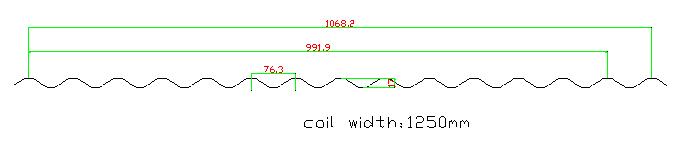

3. Profile drawing

4. The Chart of Process Flow

Manual Decoiler—Roll Forming—Fly Cutting—Out table

5. Specification of Components

(1) 5T electrical Un-coiler

• Width of feeding: 1000mm
• Capability: 5 Ton
• Inter diameter: 500-590mm
• Maximal out diameter: 1500mm
• Mode of expand &fight: inner expand &fight by manual
• Way of feeding: motor, 5.5kw

(2) Main Roll Forming Machine

• Roller material:ASTM1045 chrome plated surface with chrome
• Shaft diameter: ￠70mm material: SAE1045 with quenching and tempering

(3) Machine Structure

• Main frame by 350H beam welding
• Machine structure: wall board

(4) Hydraulic fly cutting system

• hydraulic fly cutting, no stop
• Cutting after forming: Cut the sheet after roll forming to required length
• Material of blade:Cr12, 58-62 HRC hardness
• Cutting power by hydraulic,4KW
• Working pressure: 12Mpa adjustable
• Length measuring: Automatic encoder length measuring
• Tolerance of length: +/- 1.5mm for each piece end product

(5) Computer Control Cabinet

• Programmable setting of profile length and quantity
• Operating system language: English and Chinese
• Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved

• PLC: Panasonic or customerization
• Touch screen: MCGS
• Inverter: YASKAWA
