0.7-1.3mm Thickness Floor Deck Roll Forming Machine 85mm Shaft 30
Stations
1. Specification of the material
1. Sutiable Material: Galvanized steel, 550Mpa
2. Width of the raw material: 1220mm
3. Thickness: 0.7mm-1.3mm
2. Machine Detailed Parameters
1
| Roll Forming Machine | Floor deck roll forming machine |
2
| Machine structure | Wall board structure |
3
| Total power | Motor power-11kw x2 Hydraulic power-5.5kw |
4
| Roller stations | About 30 stations |
5
| Productivity | 0-15m/min |
6
| Drive system | By chain,, 1.2inch, double line |
7
| Diameter of shaft | ￠85mm solid shaft |
8
| Voltage | Customized |
9
| Color Of The Machine | Yellow and blue |
3. The Chart of Process Flow
Decoiler—Feeding— Roll forming— cutting— Out table
4. Specification of Components
(1) 5T Manual Un-coiler
- Width of feeding: 1250mm
- Capability: 5 Ton
- Inter diameter: 500-590mm
- Maximal out diameter: 1500mm
- Mode of expand &fight: inner expand &fight by manual
- Way of feeding: manual
- Color: blue
- Quantity: 1

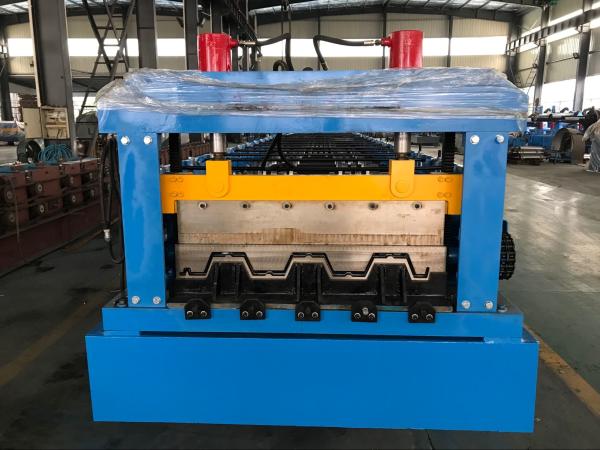

(2) Main Roll Forming Machine
- Roller material: ASTM1045 chrome plated surface with hardness
- Shaft diameter: ￠85mm material: SAE1045
- Chain: 1.0 inch double chain
- All the driven parts will covered with protective cover
(3) Machine structure
- Main frame by 350H beam welding
- Machine structure: wall board panel
(4) Hydraulic cutting system
- Cutting after forming: Cut the sheet after roll forming to required
length
- Uses two hydraulic cylinders for operation.
- Material of blade:Cr12, 58-62 HRC hardness
- Cutting power by hydraulic,5.5KW
- Working pressure: 16Mpa adjustable
- Length measuring: Automatic encoder length measuring
- Tolerance of length: +/- 1.5mm for each piece end product
(5) Computer Control Cabinet
- Programmable setting of profile length and quantity
- Operating system language: English and Chinese
- Voltage, Frequency, Phase:415V, 50 Hz, 3Phase
- Computer used to control length & quantity. Machine will
automatically cut to length and stop when required quantity is
achieved
- Length inaccuracy can be amended easily.
- Control panel: Button-type switch and touch screen
- Unit of length: millimeter
- PLC brand: Panasonic
- Transducer: Yaskawa
- Touch screen: MCGS
(6) Hydraulic System
- Hydraulic power: 5.5kw
- Working pressure: 16Mpa adjustable
- Solenoid valve: 1 group
- Hydraulic oil: 46# hydraulic oil
- Quantity :1
