    Wire-electrode Cutting Top Hat Roll Forming Machine Cr12 Cutter 4kw

    Ask Lasest Price
    Brand Name : Saibo
    Model Number : Top Hat
    Certification : CE/ISO
    Price : negotiation
    Supply Ability : 300 sets per year
    Delivery Time : 70 days
    • Product Details
    • Company Profile

    Wire-electrode Cutting Top Hat Roll Forming Machine Cr12 Cutter 4kw

    Wire-electrode Cutting Top Hat Roll Forming Machine Cr12 Cutter 4kw Servo


    1. Compose of main machine


    Hydraulic decoiler

    1 set


    Feeding device

    1 set


    Main roll forming machine

    1 set


    Hydraulic track cutting system

    1 set


    Controlling system

    1 set


    Hydraulic station

    1 set


    Run out table

    1 set


    2. Specification of machine

    Technical Specification & Remark

    5T hydraulic decoiler

    • Steel coil width: 550mm;
    • Internal diameter of coil: variable, from 380 mm to 520 mm
    • Maximum coil weight: 5000 Kg;
    • Main motor power: 5.5KW
    • Hydraulic power: 4kw

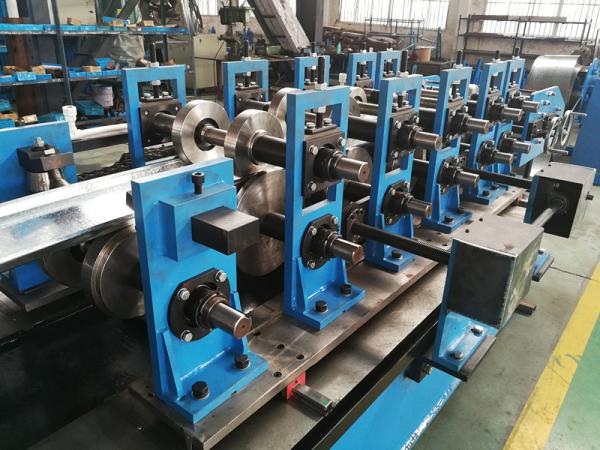

    Main Roll Forming Machine

    • Thickness range: 2.0mm
    • Main motor power:18.5kw
    • Roller material: Gcr15 surface with chrome, quenching 58-62
    • Roll station: 14 stations
    • Shaft diameter: ¢70mm material: SAE1045 with quenching and tempering
    • Chain driving system

    Fly cutting



    • Machine with fly cutting, when cut, the main machine no stop to get the high speed.
    • Hydraulic power: 11kw
    • The fly cutting is powered by servo motor, which power is 3kw.


    Correction adjust system


    • Correction of the product sheet to be straight.

    Hydraulic System



    • Hydraulic power: 11kw
    • Working pressure: 20Mpa adjustable
    • Solenoid valve: 1 groups
    • Hydraulic oil: 46# hydraulic oil
    • Quantity :1

    Computer Control Cabinet


    • Programmable setting of profile length and quantity
    • Operating system language: English and Chinese
    • Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
    • Length inaccuracy can be amended easily.
    • PLC brand: Panasonic

    Auto stacker


    • Main power: 1.5kw
    • Lemgth: 6m

    3. Warranty

    • Warranty: 1 year warranty from date of shipment
    • Guarantee:

    1: Guaranteed against malfunctions due to manufacturing defects for 1 year after date of shipment. Repairs will be made free of charge.
    2: Repairs will not be performed free of change even during the guarantee period in the follow circumstances
    - Damage occurs due to a natural disaster
    - Malfunction occurs due to user error
    - Malfunction occurs due to modifications
    - Malfunction occurs due to further movement or shipment after installation
    3:Air ticket, transportation cost, hotel, meals and 100$ per day shall be for purchaser’s account if manufacturer’s engineer has to be send to purchaser’s factory to maintain the machine during the guarantee period.

    4. Installation and training
    a. If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
    b. Without visiting, we will send you user manual and video to teach you to install and operate.
    C. If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
