0.4-0.6mm thickness Ridge Cap Roll Forming Machine Press Step Type
for roofing
Ridge cap roll forming machine is one of the most popular machines
in the market. It is mainly used for making ridge caps for roofs.
This machine has many advantages over other machines. It is very
easy to operate and can make very good quality ridge caps.
A ridge cap roll forming machine is a type of machine that is used
to form metal sheets into ridge caps. Ridge caps are typically used
in roofing applications to provide a water-tight seal at the
junction of two roof panels. Ridge cap roll forming machines can
vary in size and complexity, but most machines consist of a series
of rollers that progressively shape the metal sheet into the
desired shape. Ridge cap roll forming machines are typically used
in commercial and industrial applications, but they can also be
used in residential applications.
Main Specification:
| No | Specification of the material |
1
| Suitable Material | Colored Steel plate, Galvanized steel |
2
| Width of the raw material | 333mm |
| 3 | Thickness | 0.4-0.6mm |
1. Profile drawing:
The Chart of Process Flow
Specification of Components
| No | | Technical Specification & Remark |
| 1 | Manual Uncoiler
| - Width of feeding: 333mm
- Capability: 3 Ton
- Mode of expand &fight: inner expand &fight by manual
- Way of feeding: manual
|
| 2 | Main Roll Forming Machine
| - Roller material:ASTM1045 chrome plated surface with chrome
- Shaft diameter: ￠56mm solid shadt
- material: SAE1045 with tempering
- material thickness: 0.4-0.6mm
|
| 3 | machine structure
| - wall board structure
- 350H beam frame
|

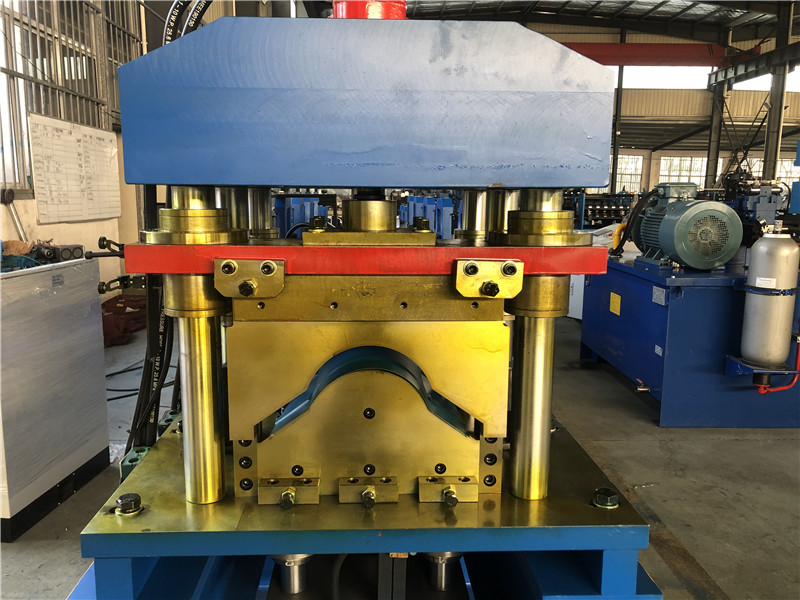

| 4 | Hydraulic pressing & cutting system
| - Material of blade/pressing mould:Cr12, 58-62 HRC hardness
- Power by hydraulic,5.5KW
- Length measuring: Automatic encoder length measuring
- Tolerance of length: +/- 1.5mm for each piece end product
|
| 5 | Hydraulic System
|
- Hydraulic power: 5.5kw
- Working pressure: 12-16Mpa adjustable
- Solenoid valve: 2 groups
- Hydraulic oil: 46# hydraulic oil
|
| 6 | Computer Control Cabinet
|
- Programmable setting of profile length and quantity
- Operating system language: English and Chinese
- Voltage, Frequency, Phase: 380V, 50 Hz, 3Phase
- Computer used to control length & quantity. Machine will
automatically cut to length and stop when required quantity is
achieved
- Control panel: Button-type switch and touch screen
- PLC brand: Panasonic
|
| 7 | out table
| - manual out table with support roller
- length: 2 meters.
- Quantity: 2 units
|
4. Warranty
- Warranty: 1 year warranty from date of shipment
- Guarantee:
1: Guaranteed against malfunctions due to manufacturing defects for
1 year after date of shipment. Repairs will be made free of charge.
2: Repairs will not be performed free of change even during the
guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after
installation
3:Air ticket, transportation cost, hotel, meals and 100$ per day
shall be for purchaser’s account if manufacturer’s engineer has to
be send to purchaser’s factory to maintain the machine during the
guarantee period.
